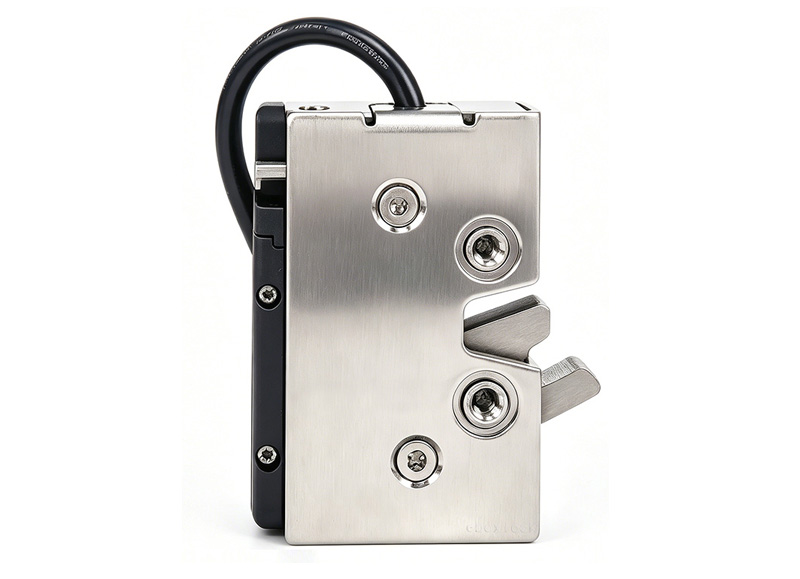

IP67 Motorized Electronic Rotary Latch Lock for Outdoor Kiosks
DJ3-MLP
The IP67-rated sealing and wide 5–26 VDC input voltage range make it suitable for both indoor enclosures and harsh outdoor environments—from industrial control cabinets to unattended kiosks and telecom equipment. Flexible surface-mount design allows vertical or horizontal installation in space-constrained applications.
Features:
l Wide input voltage range with low operating current
l Optional reporting of latch position and door open/close status
l Push to lock and electronic release
l Optional adjustable hold-open time delay
l Vandal-resistant, high-strength construction
l Corrosion-resistant version available for outdoor use
l Push to lock and electronic release
l Accept control inputs from any access control devices
Specifications:
|
Operation Voltage: |
5-26VDC Nominal |
|
Operating Current: |
Less than 200mA |
|
Standby Current: |
15uA |
|
Time of Latch Release: |
1 second free load |
|
Operation Mode: |
Fail secure |
|
Holding Force: |
600KG |
|
Cycle Rating: |
More than 1,000,000 |
|
MS Contact Rating: |
3A @125V |
|
Working Temperature: |
-40ºC ~ +60ºC |
|
Working Humidity： |
85% |
|
IP rate： |
IP67 |
|
Dimensions LxWxH: |
72mm*42.8mm*18mm |
|
Weight: |
0.27kg |
|
Certificate: |
CE, ROHS, REACH ISO9001 |
